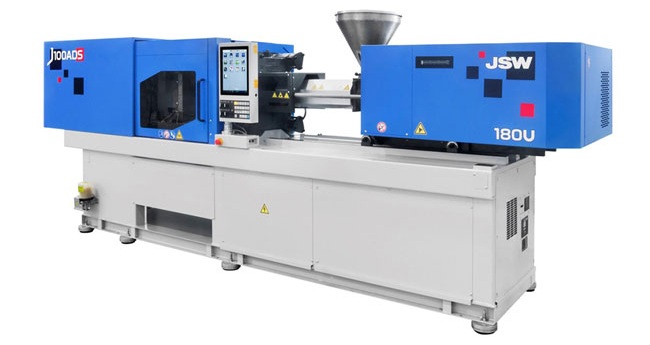

Small Size All Electric Machine
Mobility
Energy
Information Communication & Electronics
Life & Home Appliance
Medical ＆ Nursing Care
Safety ＆ Security
Clamping force: from 300kN to 1,800kN
Based on the concept of "Bringing you Maximum Performance", we have achieved a stronger, "long life design" and "precise & stable molding" by our extensive experience.
In addition, the new controller, which is based on ergonomics and is extremely easy to use, provides advanced intelligence to meet the diverse needs of various molding factories and contributes to increased productivity.
-
4 Solution for High Productivity
AD Satisfaction Satisfy all your Requirements
Equipped with energy saving assist, molding assist, various memo functions, simple sequence creation function, etc. as standard equipment.
We meet the needs of various departments such as management, manufacturing sites, maintenance, and production engineering.AD Strong Supplying satisfaction in various molds

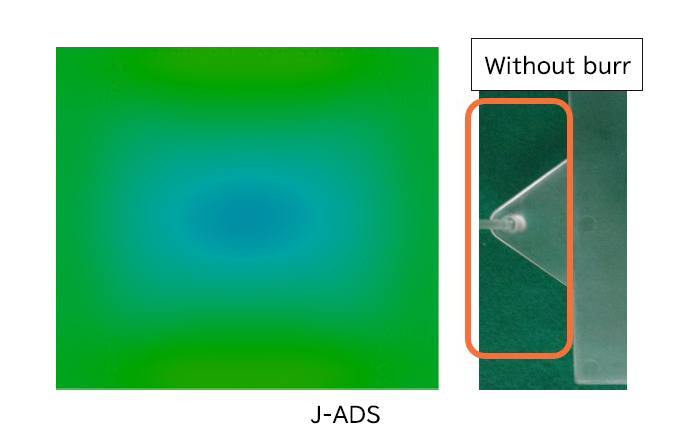

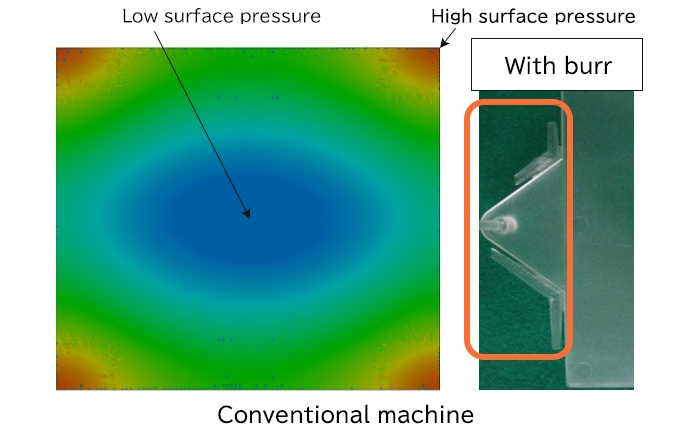

The "flat press platen," which compresses the entire mold uniformly, improves the dimensional accuracy of molded products, suppresses burrs, extends the life of the mold, and reduces the frequency of maintenance.
AD Stable Satisfaction with evolution of applications
A wide variety of screw variations, injection / holding pressure transfer mode, and various volume stabilization controls contribute to the improvement and stabilization of molded product quality.Various injection / holding pressure transfer mode Transfer

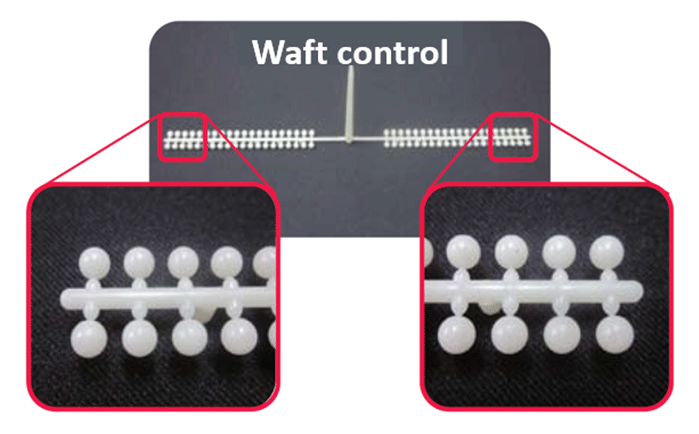

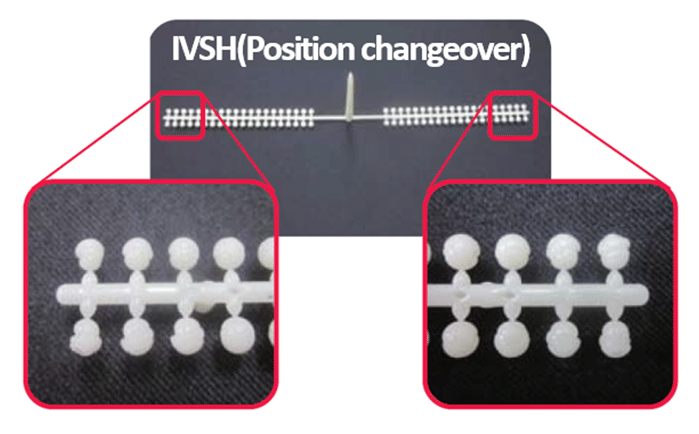

modeControl Improvements IVSH Position changeover ー IVSL Speed transfer Less variation when filling IPS Pressure transfer Less variation when filling EXT External signal selection Pressure within the mold can be controlled (selected) by the user Waft control 1 Constant control of the cushion position Flow extension, improvements in filling balance, pressure reduction in the mold, etc. Waft control 2 Constant control of the cushion
position + Pressure holdingFlow extension, improvements in filling balance, pressure reduction in the mold, controlling sink marks, etc.
AD Smart Stable Production by Advanced Intelligence
- The new controller with improved operability and functionality [SYSCOM5000i]
- Inspection and maintenance function to prevent unexpected machine stop [J-Support]
- Molding assist function that reduces the load on the operator [J-Assist]

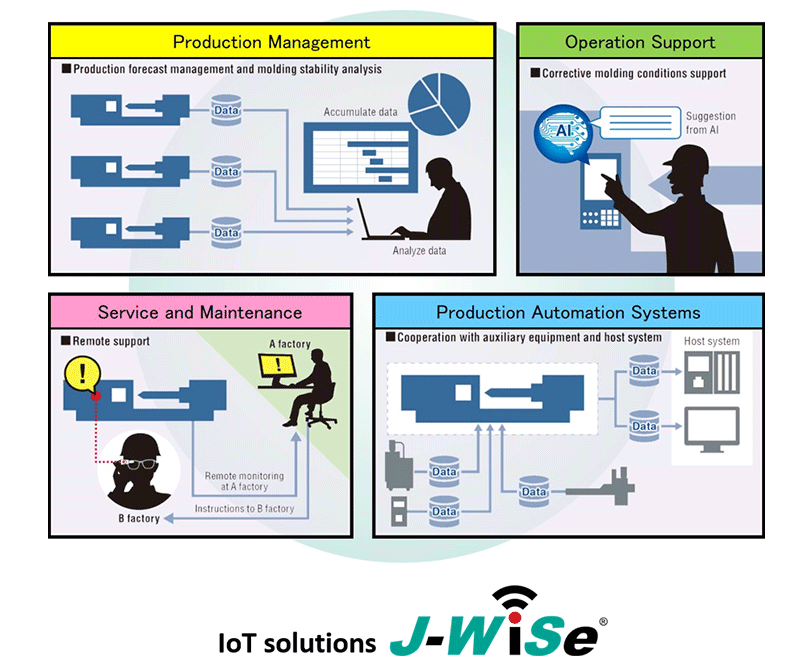

- IoT solution [J-WiSe®]
