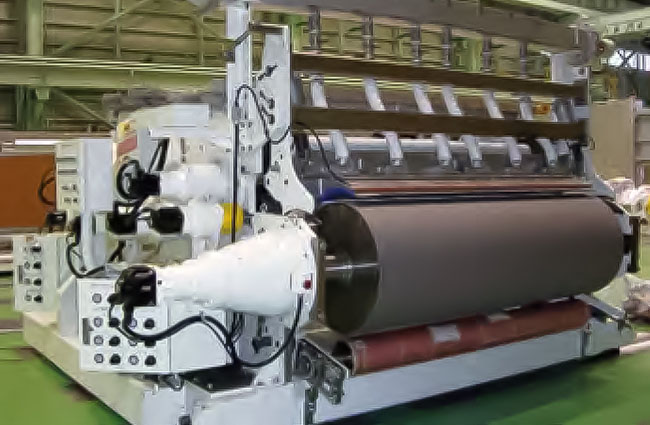

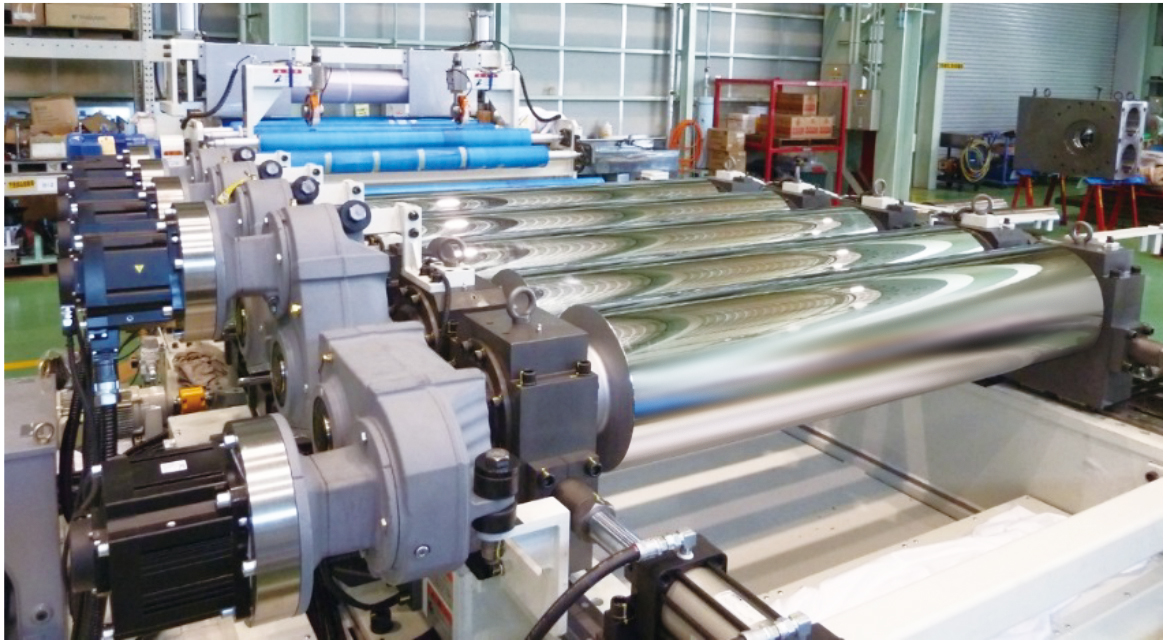

Cast Film Production Machinery
Equipment that cools and molds film and sheet resin that comes out of a T-die.
-

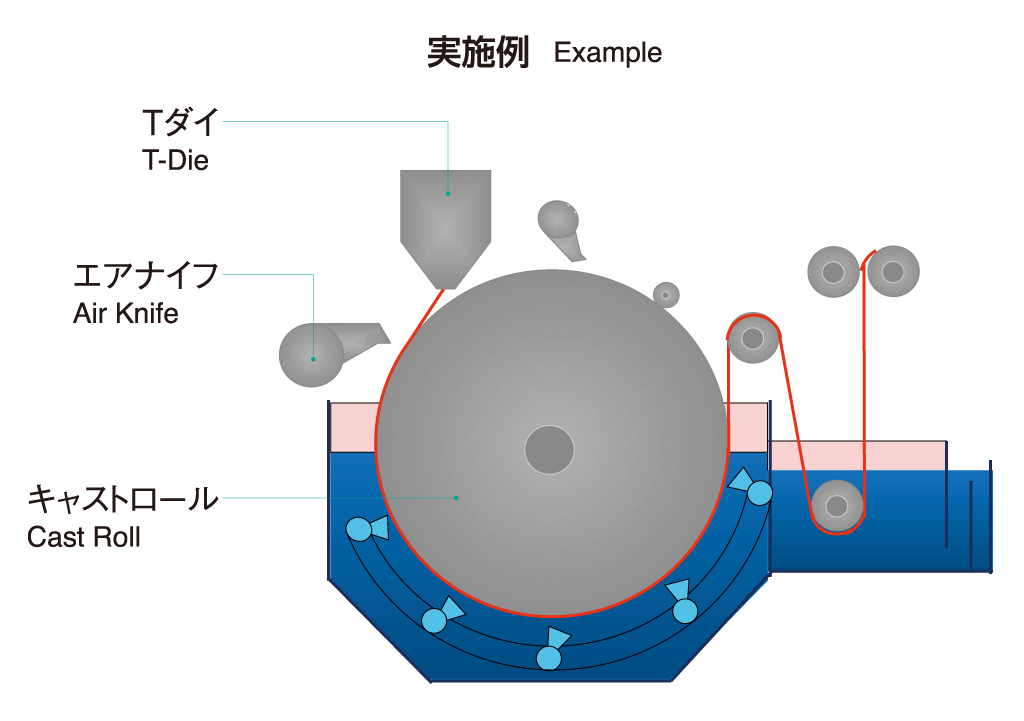

- It's possible to choose the way of mold depends on the use
- Most suitable design of roll layout
- Pinning :Electro Static Pinning
Air Chamber
Air Knife
Touch Roll
Vacuum Chamber
- High transparency

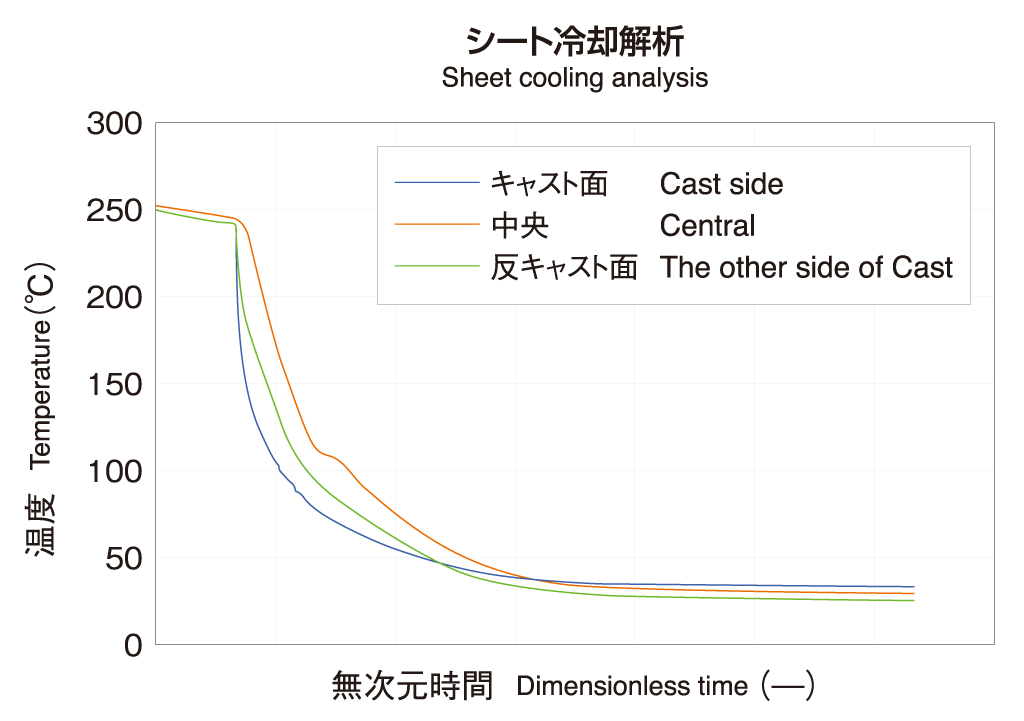

Restraint of crystallization by rapid cooling - High gloss
Mirror surface transcription by both faces touch - Product with no curve
Restraint the gap of both sides temperature - Thin sheet production
Application of JF roll (Flexible metal roll)
Molding Auxiliary Machine

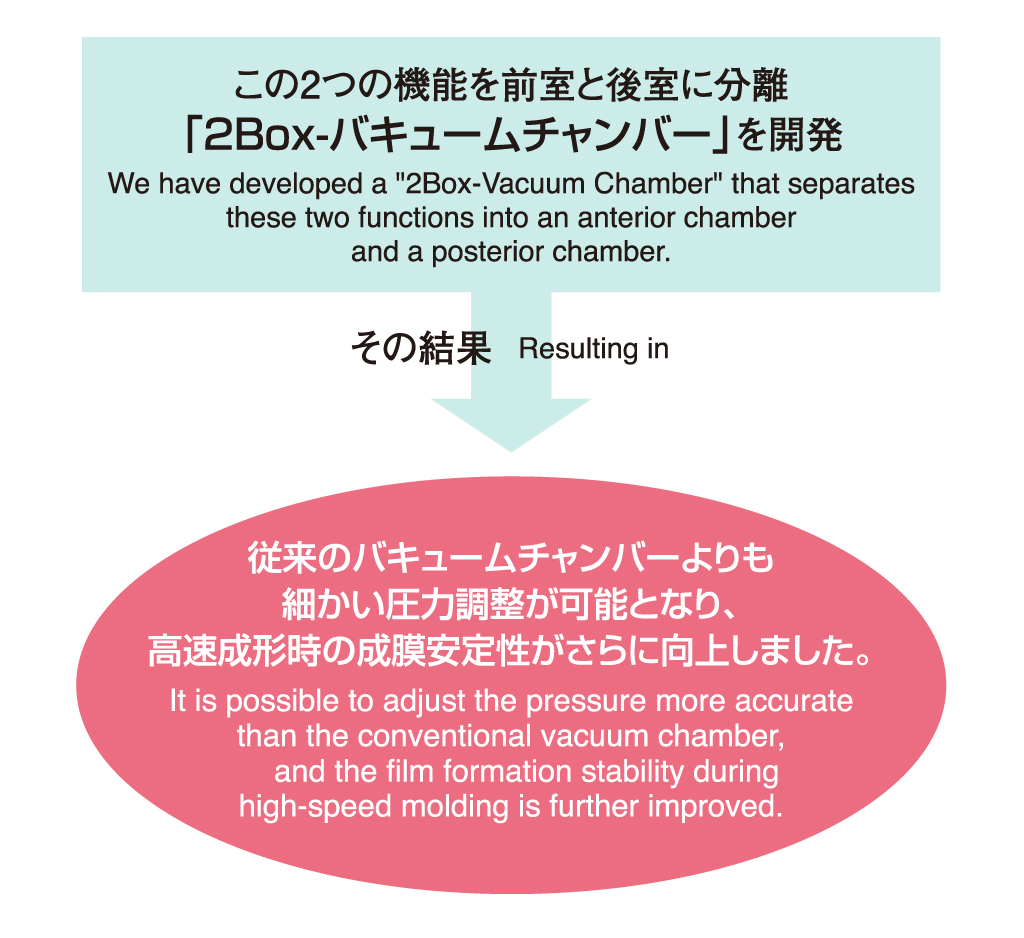

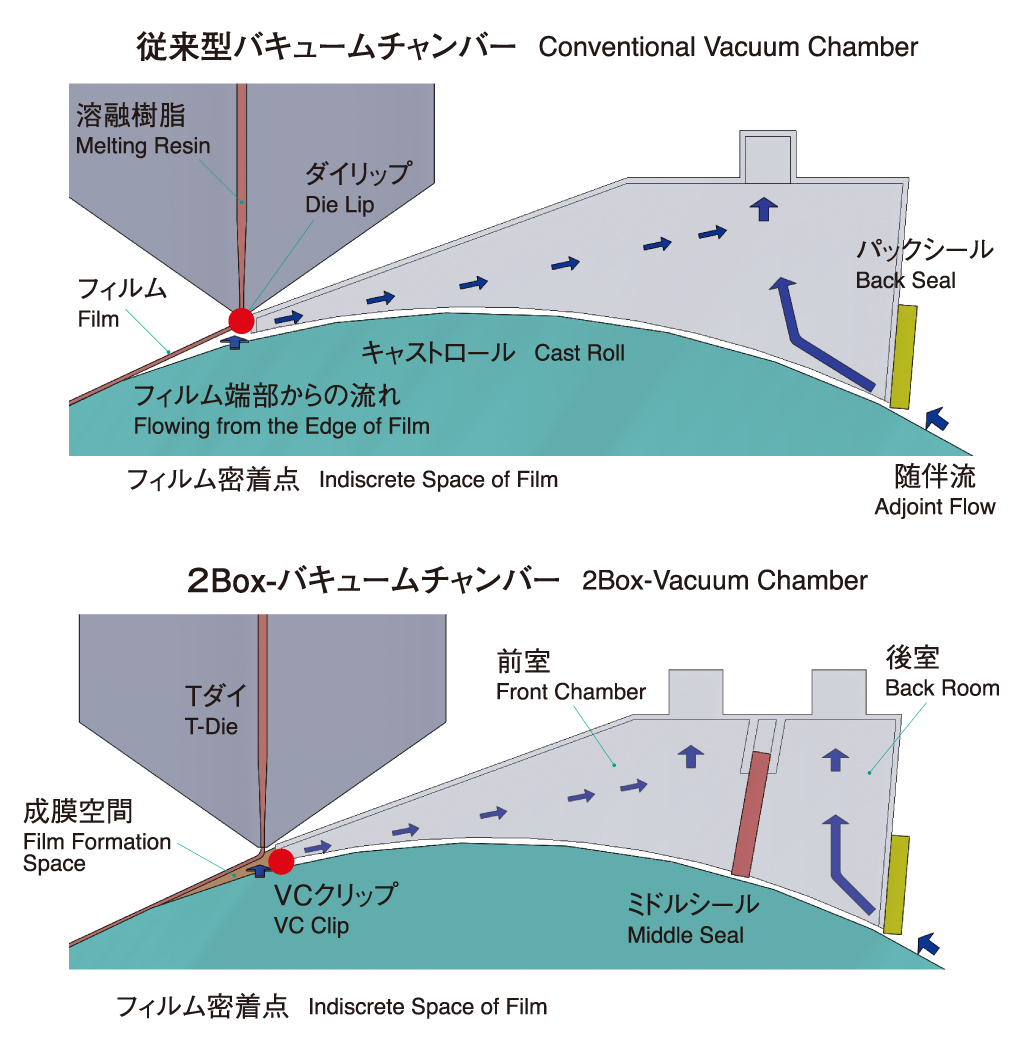

2 Box-Vacuum Chamber
Vacuum Chamber improves pinning of molten resin and Casting Roll which make infuenced with the superficial and thickness accuracy of Film.【The function of Vacuum Chamber】
- Equalizing Negative Pressure of Film formation space consisted of Film and Roll and Vacuum Chamber
- Suctioning the accompanying flow on the rotating roll surface
