Winder
This is a machine that winds up manufactured films and sheets. We can propose the optimum model and mechanism for a variety of base materials and needs.
-
- Film & sheet that wants to reduce loss when switching winding spindle.
- Film & sheet that mechanically require touch roll until winding is completed.
-

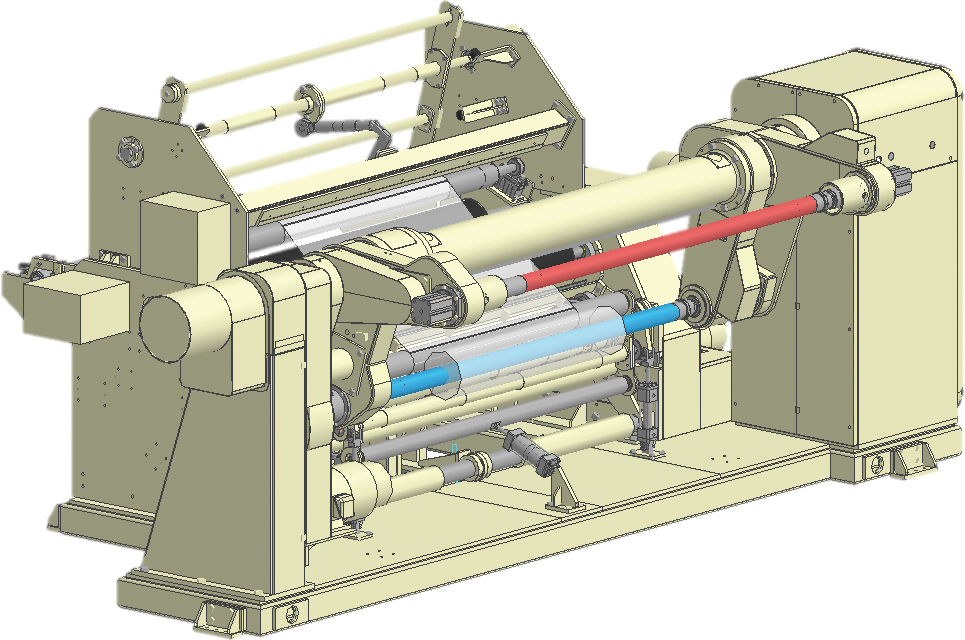

- JSW's original winder with a mechanism that allows two arms to rotate independently.
- Productivity can be improved by minimizing the loss when switching the winding spindle.
Features
- Stable product winding is possible because the spindle is not swiveled during winding.
- Minimize operating time by the waiting spindle has already been turned to the winding stand-by position.
- The unloading height can be decided regardless of the spindle position during winding operation.
Delivery Record
-
Various Films
- Battery separator film
- Optical film
- Fluorine film
- Protect film
- Capacitor film
-
Various Sheets
- PVC sheet
- PET sheet
- PP sheet
- PC sheet
-
Others
- Non-woven fabrics
- Adhesive tape etc.
2-spindle Turret Winder

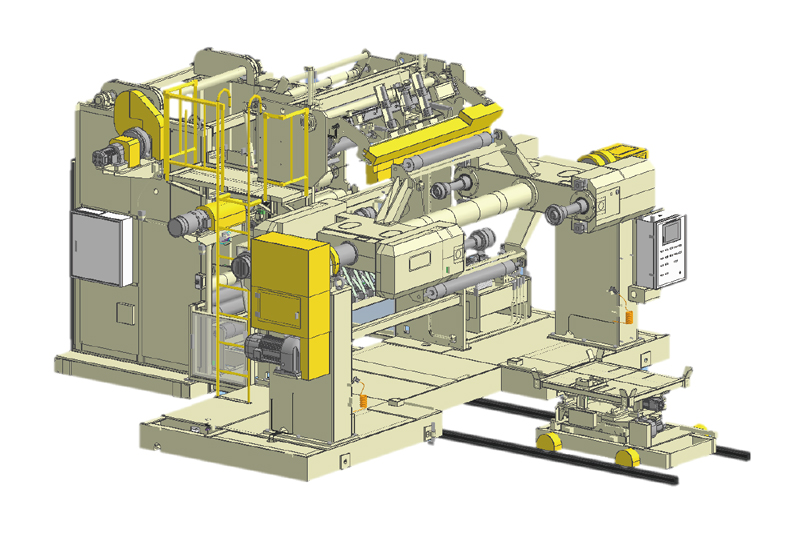

● Large winding roll
It is possible to wind the sheet with a diameter of 1,000mm or more.
● Corresponding to winding core
It is possible to handle multiple sizes of cores.
● Take 2 products in 1 line
Various proposals are possible for the method.

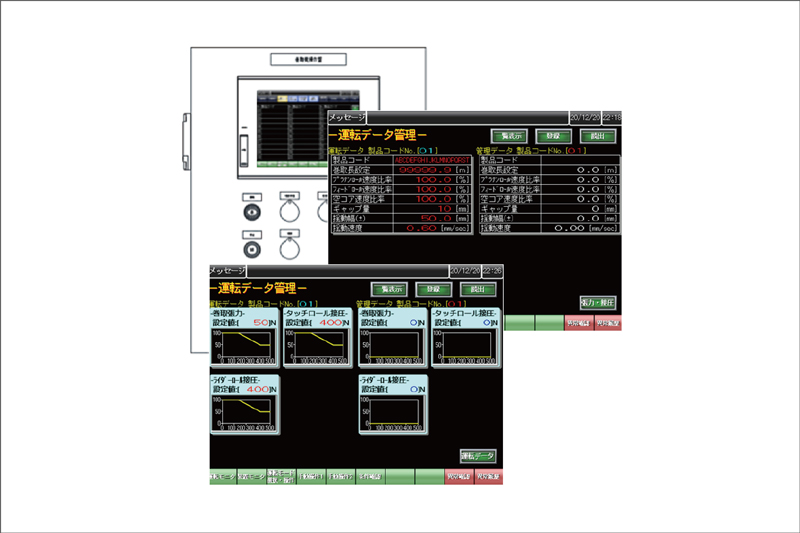

● Operability
Setup table on the touch panel, anyone can set reproducible conditions by recipe.

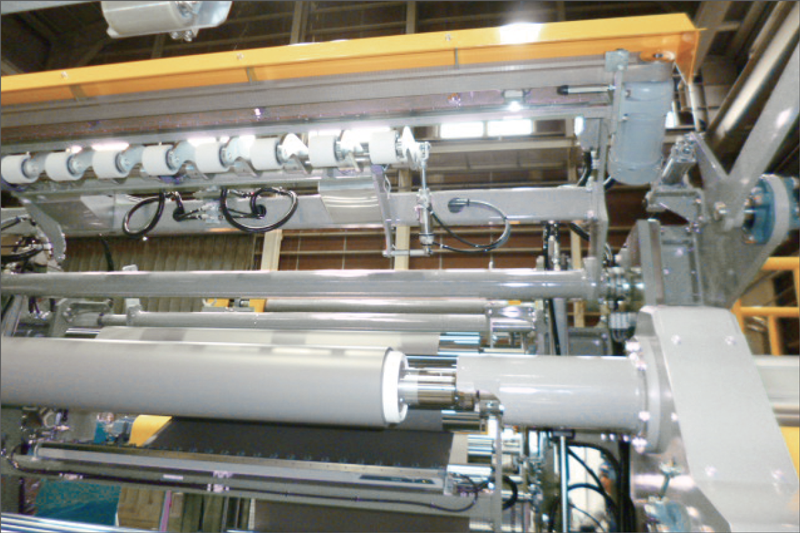

● Winding roll, and wrapping belt device
Even a sheet with a thickness of 1mm or more can be wound securely.
(Double-sided adhesive tape assistance required) -

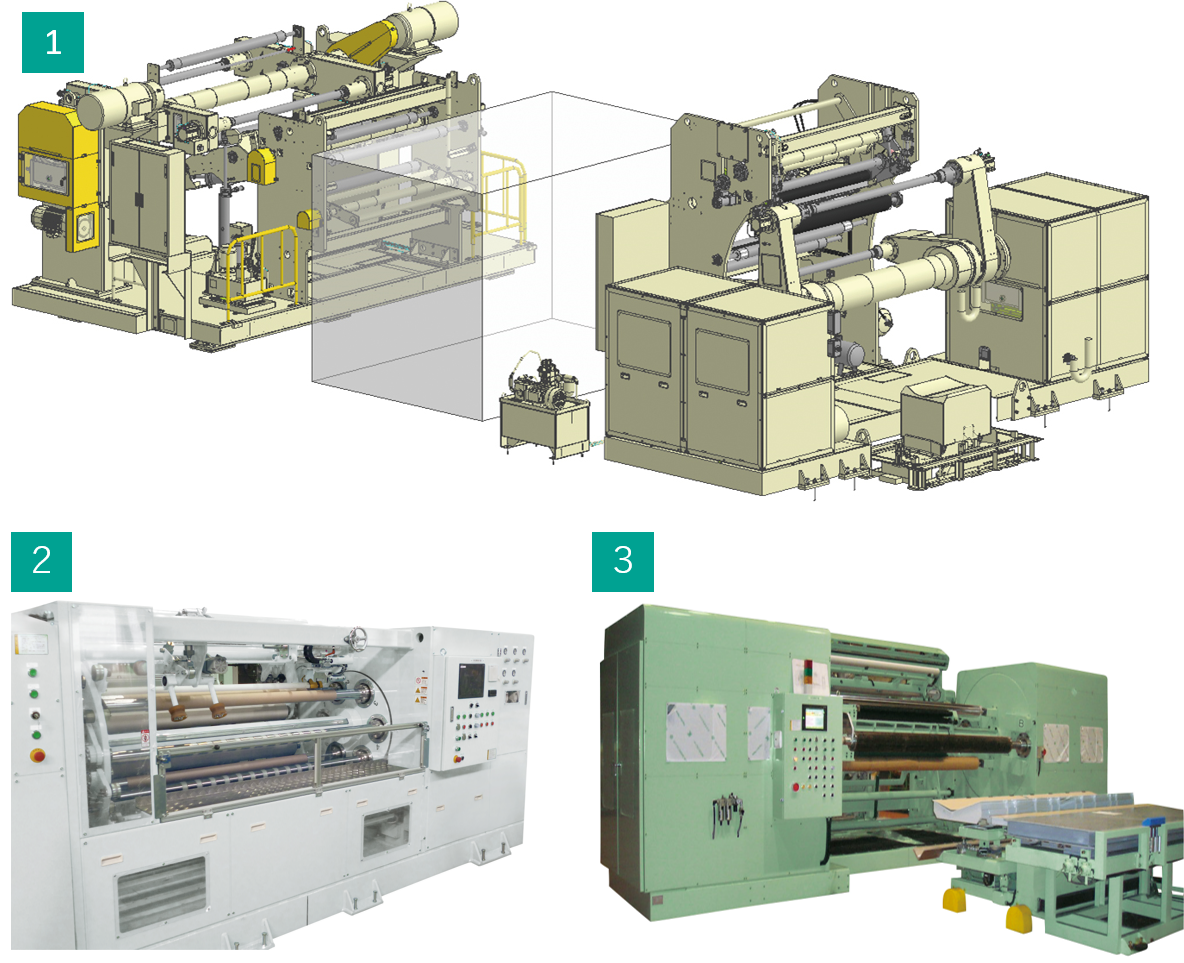

1) Device for processing lines
(High-speed coating, stretching, special laminating, etc.)
2-spindle turret unwinder and 2-spindle rotary (or turret) winder
2) Device for adhesive tape production line6-spindle turret winder
3) Device for large winding high load 2 winding products for plastic sheets2-spindle turret winder with center support
OthersOne spindle unwinder/winder, laminator device, rewinder,
non-woven fabric’s slitter, etc.
