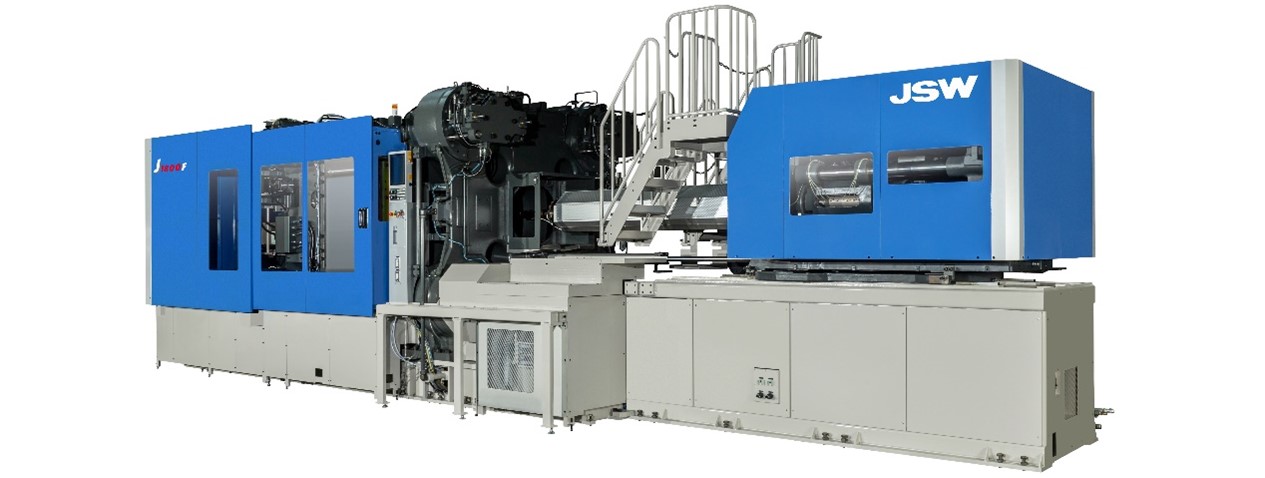

2 Platen Type Ultra Large Electric Injection Molding Machine "J2500F"
2022.12.27
We launch new 2 Platen Type Ultra Large Electric Injection Molding Machine with big tie-bar lock system J2500F from December 2022.
Clamping unit with tie-bar rock system saves machine length. At same time, Electric mold O/C, ejector and tie-bar rock system make high speed and quick response clamping unit possible.
By above and all electric servo drive injection unit (industry-leading quick response, high speed and high pressure injection), our machine can provide you thin wall, precision and faster cycle molding of large products for example large interior and exterior parts for automobiles, home appliances, building material parts, etc.
⇒ Approx. 3 m shorter machine length compared to same class toggle type IMM
● Productivity
⇒ Max. 1,000mm/sec. Mold Open/Close by electric servo motor
● Running cost
⇒ Energy saving by electric servo motor and high efficient hydraulic system
(Power consumption: Approx. 55% less to hyd. IMM)
⇒ Much less hydraulic oil and cooling water
(Hyd. oil: Approx. 70％ less, cooling water: Approx. 85% less to hyd. IMM)
● Optional solution
⇒ Rich optional equipment to satisfy various needs of customer
- Various Screw Design
- Multi-color/material Molding
- Physical Foaming Molding etc.
