Power Generating Equipment
Turbine & Generator

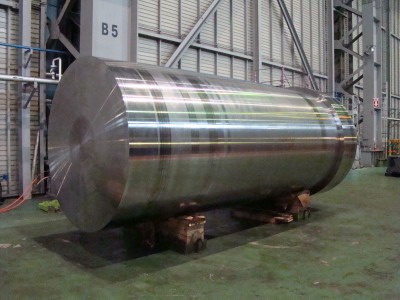

| LP Turbine Rotor Shaft | IP Turbine Rotor Shaft | Generator Shaft | |
|---|---|---|---|
| Image |
|
|
|
| Dimension(mm) | Barrel Dia. 2,597mm Barrel Length 5,718mm Over All Length 10,420mm |
Barrel Dia. 1,070mm Over All Length 7,400mm |
Barrel Dia. 1,805mm Barrel Length 6,800mm Over All Length 14,250mm |
| Weight | 144.4ton | 33.0ton | 172.3ton |
| Material | Super Clean 3.5%NiCrMoV Steel | 12%Cr Steel | 2.8%NiCrMoV Steel |
Nuclear
Reactor Pressure Vessel

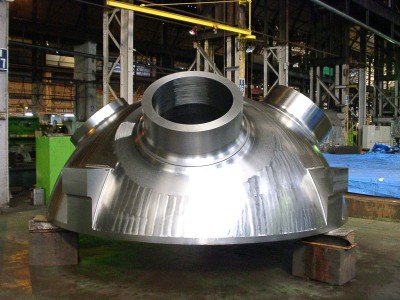

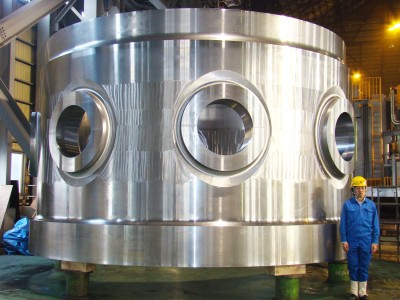

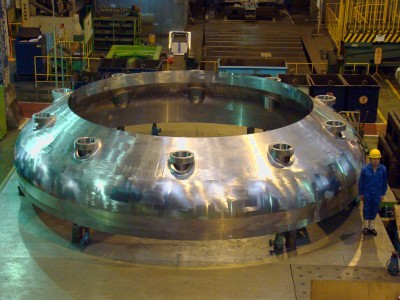

| Bottom Petal | EPR Nozzle Shell | EPR Primary Head | |
|---|---|---|---|
| Image |
|
|
|
| Dimension(mm) | 7,625(od) × 1,640(H) mm | 5,805(od) × 3,470(H) mm | 3,750(od) × 1,535(H) mm |
| Weight | 80ton | 169ton | 23ton |
| Material | ASME SA508, Cl.3 | RCC-M 16MND5 | RCC-M 20MND5 |
Others

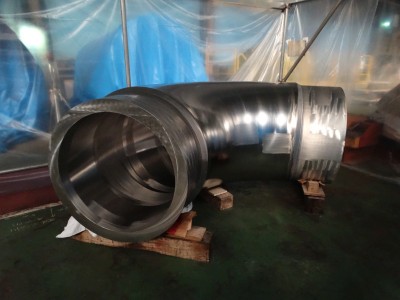

| Monoblock Type Cask | Piping/90°Elbow | ||
|---|---|---|---|
| Image |
|
|
|
| Dimension(mm) | 2,312(od) × 5,262(H) mm | 1,007(od) / 100(T) / 1,124(Radius) mm | |
| Weight | 62ton | 5.5ton | |
| Material | JSME GLF1 | SUS304 |
