Material Research

 Observation of Metallographic

JSW carryies out the metallurgical investigation to assess the degradation of materials based on abundant knowledge and experience as material manufacturer.

Replica Method

  • Schematic of replica method

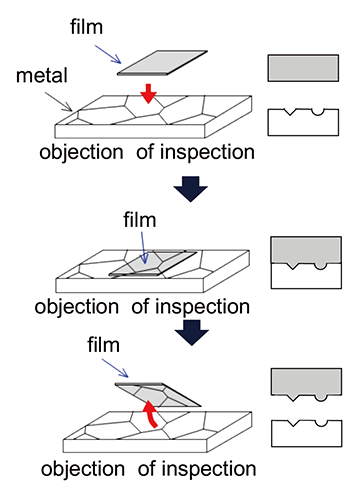

    【Schematic of replica method】
  • Schematic of replica method

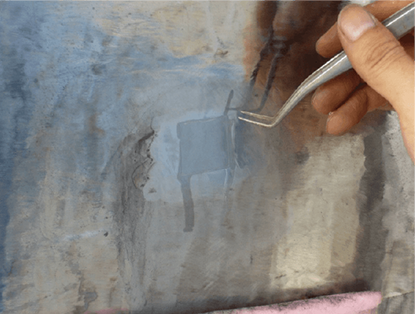

    【Operation】
    Schematic of replica method
    【Example of observation】

Optical Microscope

  • Schematic of replica method

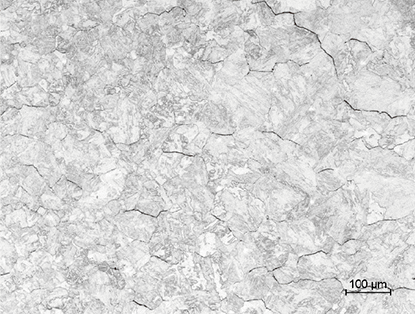

    crack on carbon steel
  • Schematic of replica method
    crack on stainless steel
  • Schematic of replica method
    Ductile icon casting
  • Schematic of replica method
    Flaky graphite cast iron

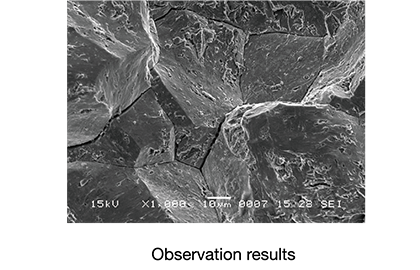

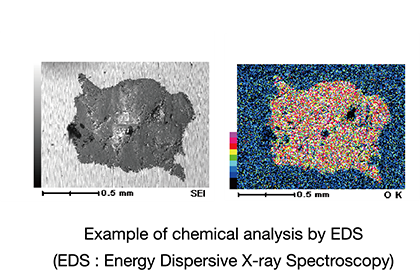

Scanning Electron Microscope (SEM)

  • Schematic of replica method
  • Schematic of replica method

 Mechanical Test

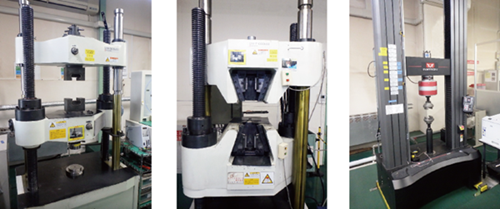

Tensile Test

    • Applicable standards: JIS, ASTM and ISO
    • Range of load: 5～1000KN
    • Range of temperature: Room Temp.～600℃

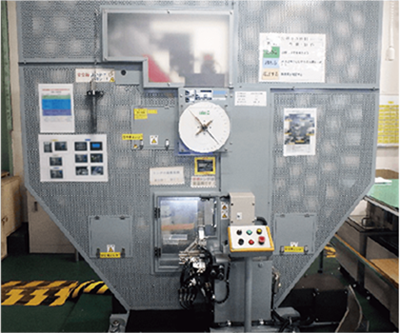

Impact Test

    • Applicable standards: JIS, ASTM and ISO
    • Range of temperature: -196℃～275℃
    • Capacity: 500J

Hardness Test

    • Vickers hardness test
    • Rockwell hardness test
    • Brinell hardness test
