Middle Size All Electric Machine
Mobility
Energy
Information Communication & Electronics
Life & Home Appliance
Medical ＆ Nursing Care
Safety ＆ Security
Clamping force: from 2,160kN to 4,420kN
Based on the concept of "Bringing you Maximum Performance" a stronger, "long life design" and "precise & stable molding" by our extensive experience.
In addition, the new controller, which is based on ergonomics and is extremely easy to use, provides advanced intelligence to meet the diverse needs of various molding factories and contributes to increased productivity.
-
4 Solutions for High Productivity
AD Strong Robust Design for Longer Life
The proven high-rigidity mold clamping system has been further evolved by adopting a tie bar bushing-less mechanism and a movable platen linear guide to achieve more stable mold clamping operation.
Clamping force feedback control and a new mold protection function are also standard equipment, enabling molding that is friendly to both the molding machine and the mold.AD Stable Ultimate Stability
A wide variety of screw variations, pressure holding transfer mode, and various volume stabilization controls contribute to the improvement and stabilization of molded product quality.
In addition, the use of energy-saving cylinders can reduce power consumption by up to 14% compared to conventional machines.Various injection / holding pressure transfer mode Transfer

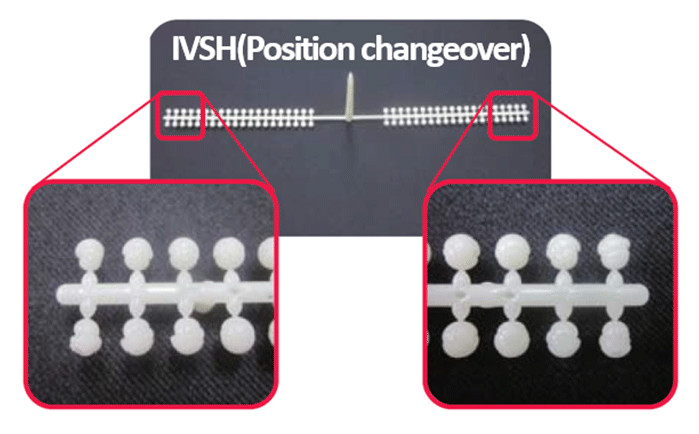

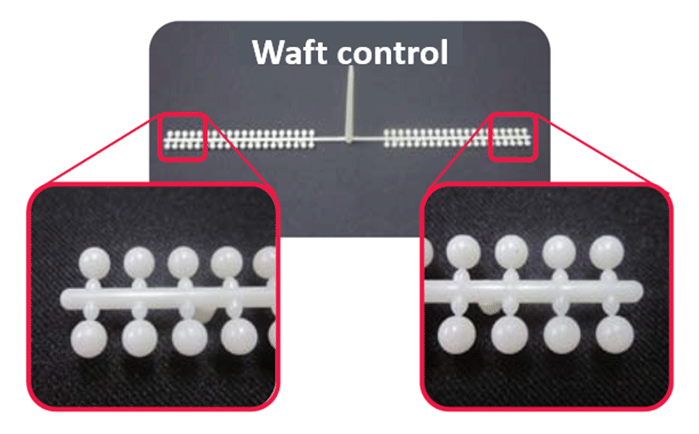

modeControl Improvements IVSH Position changeover ー IVSL Speed transfer Less variation when filling IPS Pressure transfer Less variation when filling EXT External signal selection Pressure within the mold can be controlled (selected) by the user Waft control 1 Constant control of the cushion position Flow extension, improvements in filling balance, pressure reduction in the mold, etc. Waft control 2 Constant control of the cushion position + Pressure holding Flow extension, improvements in filling balance, pressure reduction in the mold, controlling sink marks, etc.
AD Support Reduced molding machine downtime
- Inspection and maintenance function to prevent unexpected machine stop 【J-Support】
- Molding assist function that reduces the load on the operator 【J-Assist】
- It contributes to the improvement of productivity by minimizing the setup time and machine stop time due to failure.
AD Smart Stable Production by Advanced Intelligence
- The new controller with improved operability and functionality [SYSCOM5000i]

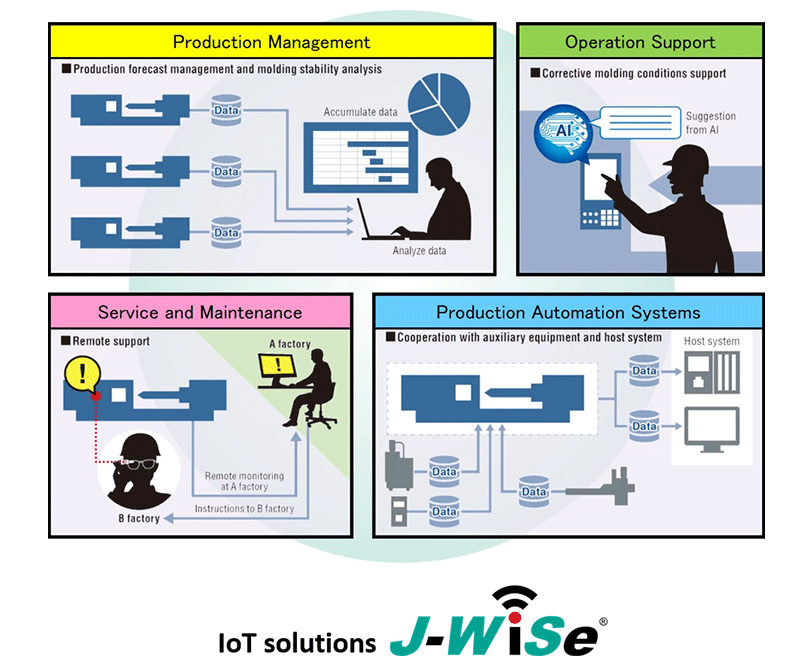

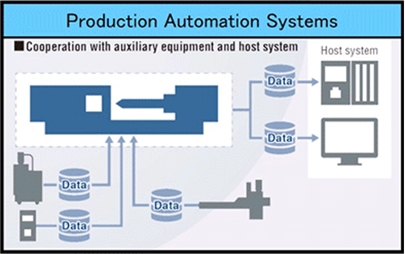

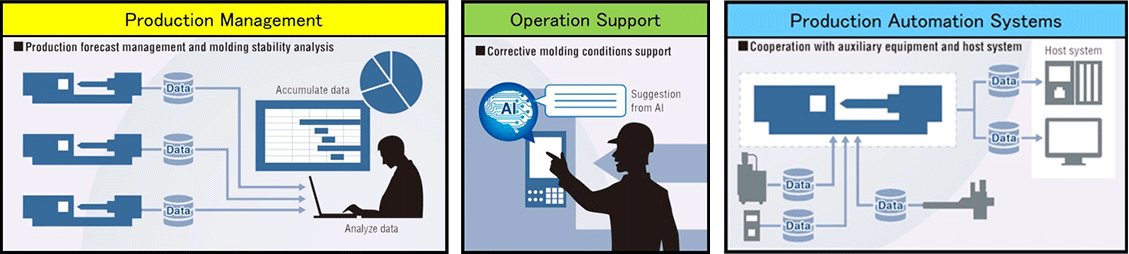

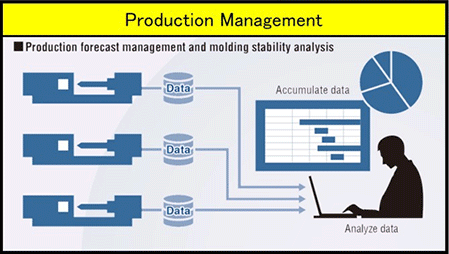

- IoT solution [J-WiSe®]
