Large Size Multilayer Blow Molding Machine
Mobility
Energy
Life & Home Appliance
This machine can be used for PFT (plastic fuel tanks for automobile and motorcycle) , spoilers for automobile, etc.
Overview of the blow molding machine

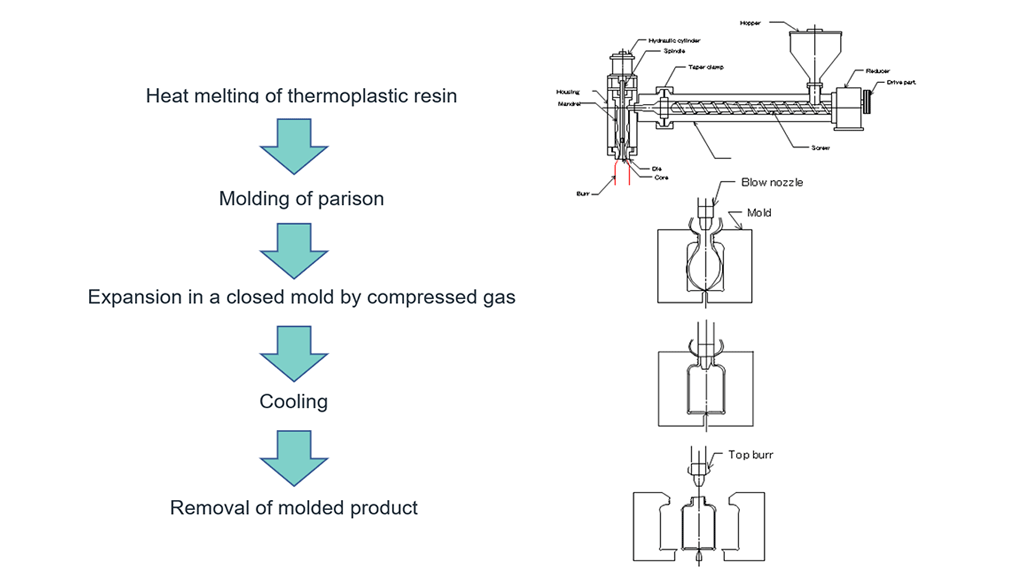

Blow molding is a molding method in which a resin called a parison, which is a pipe made of a molten thermoplastic resin, is blown out and blown out to take out after cooling.
Conventionally, it was used to manufacture bottle containers for eye drops, medicines, cosmetics, foods, detergents, etc. Recently, its features such as cost performance, high rigidity and light weight have been evaluated, and various types of products, mainly automobile parts, have been evaluated. Application fields are also expanding to industrial parts.
Conventionally, it was used to manufacture bottle containers for eye drops, medicines, cosmetics, foods, detergents, etc. Recently, its features such as cost performance, high rigidity and light weight have been evaluated, and various types of products, mainly automobile parts, have been evaluated. Application fields are also expanding to industrial parts.
The history of blow molding machine of JSW
Since the delivery of the first machine in 1962, our company has been continuously researching and developing, and has gained many deliveries and abundant experience both in Japan and overseas.
JSW's blow molding machines always respond to the needs of a wide range of customers including the bottle industry and the automobile industry with the latest technology.
JSW's blow molding machines always respond to the needs of a wide range of customers including the bottle industry and the automobile industry with the latest technology.
Delivered the first machine in 1962
Delivered 3 types 5 layers PFT blow molding machine in 1989
Launched 4 types 6 layers PFT blow molding machine in 1998

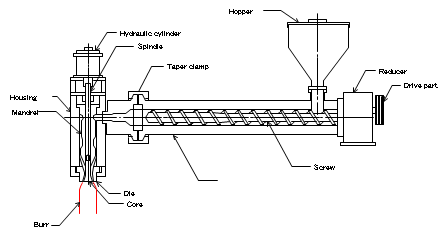

In order to obtain a good-quality molded product, a good parison must first be formed. The most important factor affecting this is the extruder.
The main components are a cylinder, screw, hopper, speed reducer, drive motor, and heating / cooling section.

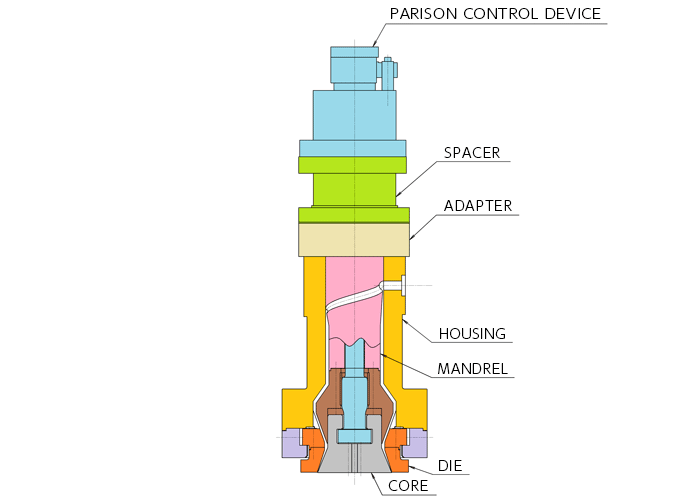

The crosshead forms a resin melted in an extruder into a cylindrical parison and adjusts the wall thickness of the parison.
-
Features of JSW Blow Molding Machine
We have a lineup that can meet a variety of needs, from bottles of a few cc to 1,000L-class tanks.
Ltd., a member of our group, manufactures small-sized hollow molding machines.
Ltd. of our group for small-sized hollow molding machines.Cross-head
We manufacture the monolayer and multilayer cross-head of consecutive method and accumulator method to the variety of molding method.
We have a variety of delivery results and get a high evaluation in response to the demand of the customers.Energy saving molding machine

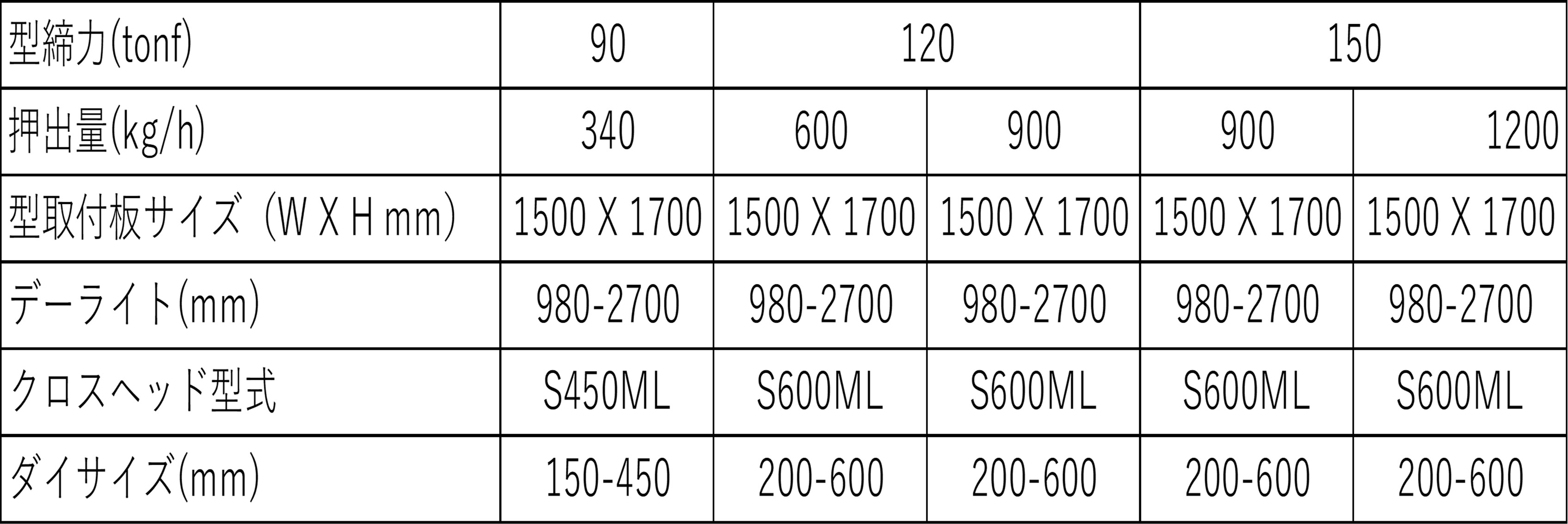

We manufacture the middle size and large size molding machine from 40ton to 150ton clamping force for several products.
In addition, we prepare hybrid type (hydraulic + electric) and all electrically driven type for a line-up to suit energy saving, high speed molding.High cycle
We prepare the options such as "Low-temperature & high through put screw" and "Air cooling system" for a high cycle molding.Built-in molding PFT

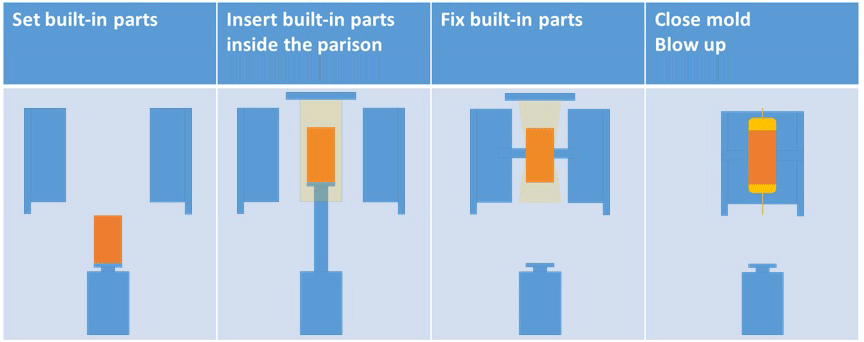

Use and Merit of Built-in molding
- High pressure resistance tank (for Hybrid vehicles)
- Reduction of slosh sound
- Reduction of permeation amount
- Built-in molding
Die slide wall thickness control unit
Machine operation monitoring system (J-WiSe®)
The system improves productivity by visualizing machine operation status.
- I. Remote support: Remote monitoring
Browse remote programs and confirm machine operation information - II. Machine chart function: Preventive maintenance
Status check by preventive maintenance / maintenance alarm, etc. - III. Data logger function: Traceability
Machine behavior can be recognized by recording main data and log data.
-
We have set up a blow molding machine for testing at the Resin Laboratory in Yokohama plant.
We are happily waiting for requests of various tests by our customers.NB120-1CCE type continuous multilayer blow molding machine
Mainly used for the development of automobile gasoline tanks.
SpecificationsCrosshead Maximum die diameter : φ600 Extrusion amount Maximum 600kg/h
Main outer layer : P65-25BB (Max : 108kg/h)
Regrind layer : P120-28AB (Max : 288kg/h)
Adhesive outer layer : P40-22BB (Max : 18kg/h)
Barrier layer : P50-25BB (Max : 30kg/h)
Adhesive inner layer : P40-22BB (Max : 18kg/h)
Main inner layer : P90-28BB (Max : 288kg/h)Molding machine Taverless hybrid mold clamping type lamping force 120ton Daylight 1,150～2,690mm JB105 type small blow molding machine
Used for basic data collection of various blow moldings as well as multilayer fuel tanks for automobiles.
SpecificationsExtruder P50-22 Clamping force (oil hydraulic) 4ton Daylight 400mm Head single head Maximum mold dimensions
(Maximum mold weight)450(L)×330(W)×204(T) (140kg) -
